Out-of-Print VG30DE Engine Maintenance Manual DOHC EGI (ECCS) Specification

This product has become out of print.

Please purchase it as soon as possible if you need it.

VG30DE Engine Maintenance Manual (Supplement I) February 1990. DOHC EGI (ECCS) Specification

This manual contains technical information and disassembly and assembly points for inspection and maintenance of the VG30DE type DOHC engine. It was created based on the engine as of February 1990.

It is composed of a technical explanation edition and a maintenance manual edition.

Applicable Vehicle Models

VG30DE

136kW (185ps) / 6,000 rpm 245 N·m (25.0 kg·m) / 4,400 rpm Regular gasoline specification

Leopard (F31) February 1986 - August 1988

140kW (190ps) / 6,000 rpm 250 N·m (25.5 kg·m) / 4,400 rpm Regular gasoline specification

Fairlady Z (Z31) October 1986 - July 1989

147kW (200ps) / 6,000 rpm 260 N·m (26.5 kg·m) / 4,400 rpm Premium gasoline specification

Sheena (F-Y31) January 1988 - August 1991

Leopard (F31) August 1988 - June 1992

Gloria Cedric (Y32) June 1991 - June 1995

Leopard J-Ferry (JY32) June 1992 - March 1996

169kW (230ps) / 6,400 rpm 273 N·m (27.8 kg·m) / 4,800 rpm Premium gasoline specification

Fairlady Z (Z32) July 1989 - August 2000

169kW (230ps) / 6,000 rpm 279 N·m (28.5 kg·m) / 4,000 rpm Premium gasoline specification

Technical Explanation Edition

Overview:

Engine Body:

Camshaft Mechanism:

Lubrication System:

Intake and Exhaust System:

ECCS (Engine Concentrated Electronic Control System) System:

Fuel Evaporation (Evaporation) Gas Suppression Device:

Blow-by Gas Suppression Device:

Cooling System:

Maintenance Manual Edition

Engine Adjustment:

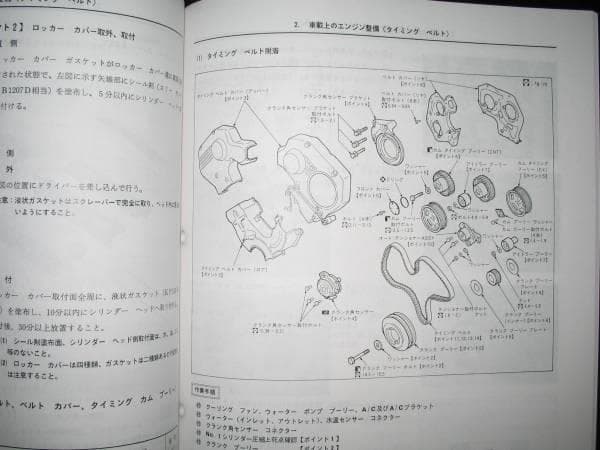

Vehicle-mounted Engine Maintenance:

Engine Removal:

Engine Body Overhaul:

Service Data:

and so on, it is explained in detail in many items.

Item condition: New / Unused.
